River - Lake - Pond Hybrid Geothermal HVAC |
|
The River, Lake, or Pond is a Hybrid Geothermal product. Utilizing the geothermal heat exchange between the river, lake, or pond and the waters changing temperature makes this HVAC system one the most energy efficient systems available. Designed for New Construction or a Retro Fit and compatible with most all standard air handlers with evaporator coils that use refrigerant (Freon). |
|
These packages are for two or three split Zones (Inside Air Handlers) systems. Designed to replace multiple Outside Air Condensers (compressor units) that are placed close together. The Hybrid Coil is sized to the amount of compressors required.
These packages include:
One Hybrid Copper Heat Exchange Coil. Close Loop Pump Module with Pump(s) Single House & Control Panel.
And
Two compressors (2-5 ton) (We will call you to verify sizes & housing) Two Freon/Water Heat Exchangers One Double Component House Or Two Single Houses
OR
Three compressors (2-5 ton) (We will call you to verify sizes & housing) Three Freon/Water Heat Exchangers One Triple Component House Or One Double & One Single House Or Three Single Houses |
|
This package includes:
One Hybrid Copper Heat Exchange Coil. Component Housing & Control Panel. One Water Pump for Loop. One Compressor (2-5 Ton). (We will call you to verify size) |
|
This Retro Fit package is for a single zone system. “RLP1” (only one outside Air Condenser & one Air Handler inside). |
|
Need Help? Call (512) 704-8200 |
|
RLP1 |
|
RLP2 |
|
RLP3 |
|
Not Sure what to order, refer to YOUR LAYOUT |
|
What is a Freon/Water Heat Exchanger? This is a component that receives the cold water from the Evaporative Subcooling Tower and inter-circles the Freon line to cools it before going to the condenser (compressor). |
|
Refer to Variables:
Planning access: Right to access and no special requirements or permits. Usually on a river, if you have a dock there is no problems.
Placement Planning:
Our Hybrid Copper Heat Exchanger may be installed in a River, Lake, or Pond. The placement should be at lease 8 feet deep at the lowest tide. If there is a dock, consider underneath, this will not interfere with boat traffic. The pipe connection to the Copper Heat exchanger should be install on land and enough pieces to cover water distance, easier to work with. Once placement is made into the water then complete the loop to the Pump Module. All pipe should be buried at least 18” deep.
This retro fit design is to replace the outside Air Condenser (outside Compressor) Units with our modern component houses with our scroll compressor and Freon/Water Heat Exchanger.
For NEW Construction we can design a Central Component House to hold all compressors and Exchanger in one location. This requires all refrigerant (Freon) lines leading to one location. Clean & Simple (call for a quote)
The Product:
All loop connections are 1 ½ PVC.
Attractive Copper Heat Exchanger is designed to rest on the bottom of the River, Lake, or Pond and the frame is designed to keep the coil lifted.
The Pump Module is all fiberglass cabinet cannot corrode. Never requires painting. The Freon/Water Heat Exchangers are size to match the compressors size. (we will call to verify sizes needed)
Manufacture offers a 10 Year Warranty on the Hybrid Copper Coil, 5 years on the Freon/Water Heat Exchanger and Compressor. |
|

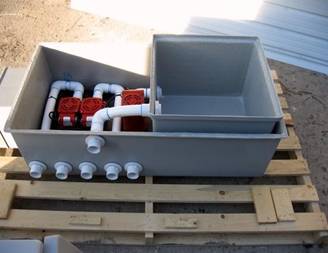

Pump Module may vary in size due to the application. The inter-reservoir makes it easy to fill Loops and add glycol if needed to prevent freezing. This allows the pumps and control panel to be centralized. |
|
All Prices FOB Austin, Texas - Freight Collect |
|
$7,995.00 |
|
$9,995.00 |
|
$13,495.00 |
|
Call to Order |
|
Energy Conservation Products |
|
If you have a River - Lake - Pond access you are very fortunate. Utilizing it as your water cooling and heating system will save you energy consumption and money. This design application is an efficient energy saving HVAC system.. |
